Stripes suddenly appear on your coating line.
The operator grabs the radio: “Shift leader, the equipment’s broken!”
The shift leader arrives, makes a call to maintenance…
An hour later, the engineer finds a small dried coating chunk on the back pressure roller. Wipes it off. Problem solved.
This scene plays out in nearly every coating shop.
Coating machines look complex, but over 80% of shutdown-causing faults are common issues that operators and technicians can diagnose and fix themselves. The key is knowing where to look.
Symptom: Regular stripes perpendicular to web direction, like vinyl record grooves. Thickness gauge shows jagged readings.
Quick Check: Put your hand on the coating roller bearing housing. Feel for rhythmic micro-vibration matching the stripe frequency? If yes — it’s not the coating solution. Problem is on the drive side.
Likely Causes:
Coupling wear/slip — #1 suspect, nearly half these cases
Motor encoder feedback anomaly — motor “hunts” position
Bearing race pitting — listen for clicking sounds
Fix: Lock out machine. Open coupling guard, inspect elastomer spider. Crumbled or deformed? Replace it. If intact, draw a line across both coupling halves with marker, run at low speed — misaligned line means coupling body wear.
Symptom: Wet film looks perfect. After oven — fine, rippled texture like orange peel.
Cause: Oven’s first zone is too aggressive. Surface skins over instantly, underlying solvent evaporates and pushes through, wrinkling the “skin.”
Fix:
Lower oven front section by 10–15°C
Reduce front zone air velocity
Add slower-evaporating solvent to delay surface skinning
Symptom: Valve closes, but coating pulls a thin “tail” like a tadpole.
Cause: Fluid inertia vs. valve timing mismatch.
Fix:
Increase pump suction angle slightly
Adjust valve closing delay to overlap with suction by a few milliseconds

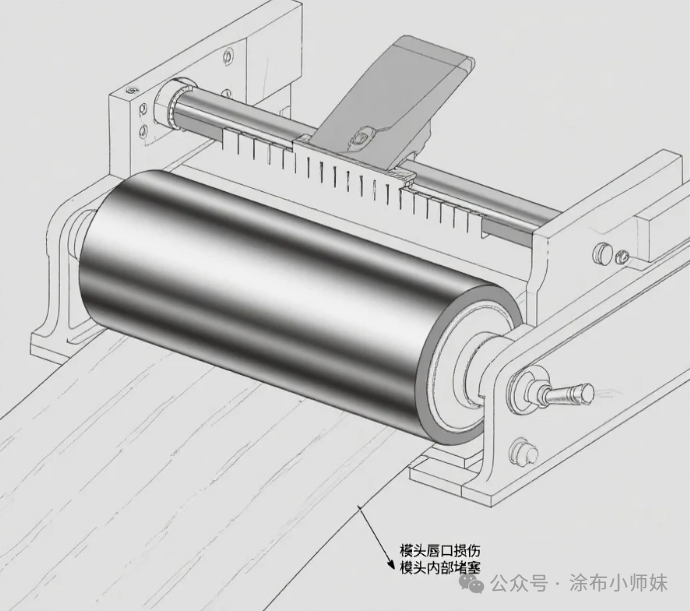

Symptom: Fixed-position continuous line in web direction.
Causes:
Dried gel in feed pipe breaking loose and clogging die exit
Microscopic nick in blade or comma roller
Hard particle stuck on a guide roller
Fix: Check feed pipes, inspect blade/roller with 10× magnifier, examine all guide rollers (especially oven exit) for stuck particles.
Symptom: Regular crescent-shaped marks on coating.
Cause: Hard particle on a rotating roller surface — each revolution “stamps” an arc.
Fix: Check floating rollers, tension rollers, and flattening rollers near coating head exit. Stop machine, rotate each roller by hand, feel for protrusions or use strong flashlight.
First: Confirm whether it’s the substrate or just the coating.
Die Adjustment Golden Rule:
Use pressure-sensitive paper. Stop machine, close die, insert narrow strips of pressure paper, apply pressure for 5 seconds. The red intensity pattern tells you everything.
Adjust from center bolts outward, symmetrically. Turn each bolt the same angle — 15° increments max. Over-tightening causes permanent die lip deformation.
Symptom: Parameters that worked in the morning stop working by afternoon.
Hidden Variables:
Coating temperature — 28°C after mixing, 22°C after afternoon AC. Viscosity can shift 30%.
Ambient humidity — hygroscopic films swell/shrink
Coating settling — high-density fillers settle in hopper without continuous slow mixing
Three Sources:
Coating itself — let fresh batch sit; if bubbles don’t rise, check defoamer
Feed lines — check pump inlet/outlet for air leaks, verify vacuum degassing
Oven — entrance temperature too high, surface skins over, solvent erupts through
Fix: Lower oven front temperature, add slow solvent, ensure vacuum degassing works.
Cause: Winding too loose, layers slide sideways.
Fix: Use taper tension — tension decreases as roll diameter increases. Verify air shaft securely grips the core every roll change.
Dry climate + winter = coating machine becomes a generator.
Passive grounding isn’t enough. Install ionizing air bars at oven exit and before rewind.
Maintenance: Weekly — wipe emitter needles with alcohol-dampened lint-free cloth. Needles coated with adhesive mist = zero performance.
Symptom: Unexplained craters, orange peel, poor adhesion after product change.
Cleaning Checklist:
After pipe cleaning, wipe inner wall with white cloth — any color residue?
Die disassembled — any dried material in gaps?
Back roller surface — chemical residue from previous product?
Standard Changeover: Pipe circulation clean → Die soak → Roller wipe → Solvent trial run → White cloth verification. Don’t skip steps.
Check Order:
Parameters — Is taper tension set correctly? Excessive initial tension causes inner-layer wrinkles.
Mechanical — Is winding pressure roller pressure uniform? Over 10% left-right difference causes skew. Check winding shaft runout.
Air system — Is differential shaft air pressure stable? Is each slip ring working independently?
Q: Where to start learning coating processes?
Don’t just sit in the control room. Go to the winder with a notebook. Touch the film. Record each defect’s feel, shape, and position. Without developing your tactile sense, looking at spectral images is useless.
Q: Equipment is old, controls outdated — any hope?
Replace tension controllers and key-zone fine-adjustment mechanisms. It’s not a cost — it’s insurance.
Q: Why don’t others’ parameters work for me?
Because every machine has different mechanical precision, wear levels, and even shop temperature/humidity. Parameters are references. Your own trial-and-error data is what matters.
