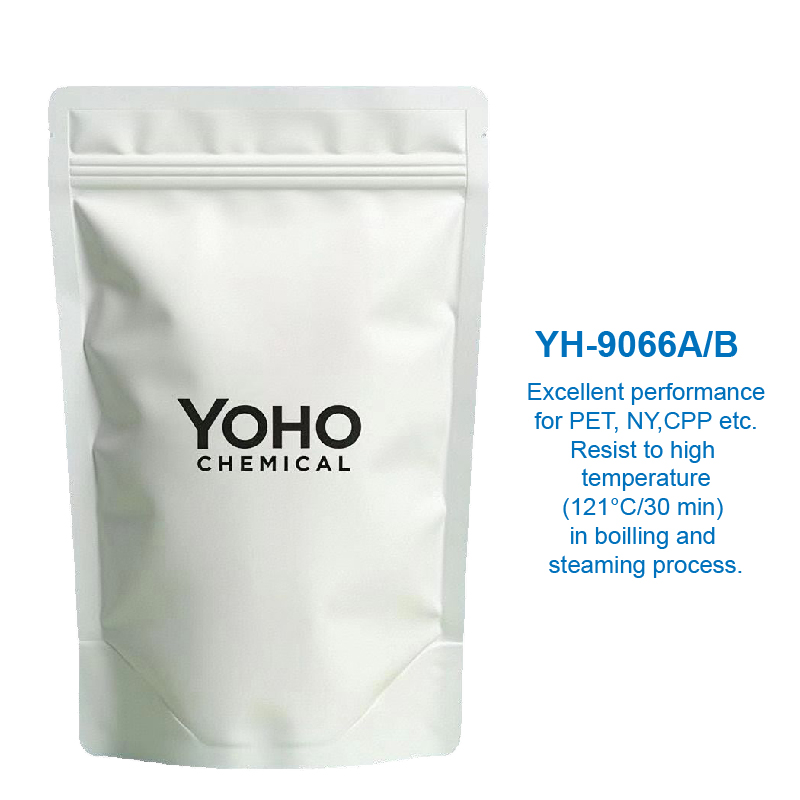

YH-9066
YOHO
Introduction:
YH-9066 is specially designed to handle packaging contents in condition of 121°C /30 Min.
Features:
This product is very suitable for plastics composite such as PET, NY, CPP etc. It can obtain higher initial and final composite strength and is suitable for the production of plastic- plastic structure cooking packaging. At the same time, it is also very stable and resists to corrosion with good performance in coating processing.
Safety:
This product complies with the following health and safety regulations:
1. GB/T9685-2008 <Hygienic Standard for the use of Additives for food containers and packaging Materials>".
2. GB/T15193.1-94<Toxicological Evaluation Procedure for Food Safety>.
3. GB/T10004-2008 <Packaging plastic composite film, bag dry composite, extrusion composite>.
4. United States Food and Drug Administration (FDA) 21C FR 175.105.
Specifications:
Item | YH-9066A | YH-9066B |
Ingredient | Modified Polyester Polyol | Terminal isocyanate-based curing agent |
appearance | Light yellow transparent liquid | Light yellow transparent liquid |
Solid content(%) | 66±2 | 72±2 |
Viscosity | 3000~4500(mps25℃) | 1000-2000（ mps20℃) |
solvent | Ethyl Acetate | |
Ratio | 5 | 1 |
Changes in solid content and solvent during dilution:
|
| Solid Content% | Standard ratio (weight ratio) | Working ratio (kg) | |||
Main Agent | Curing Agent | Main Agent | Curing Agent | Ethyl Acetate | |||
YH-9066A/B | 35 | 5 | 1 | 20 | 4 | 22 | |
30 | 5 | 1 | 20 | 4 | 30 | ||
25 | 5 | 1 | 20 | 4 | 40.3 | ||
The adhesive can be used in solvent of ethyl acetate, acetone, methyl ethyl ketone, etc. It is recommended to use ethyl acetate. When the composite film with high quality requirements is manufactured, the water content of the solvent shall not exceed 0.03% and the alcohol content shall not exceed 0.02%.
Method of application:
Blend: 5 YH-9066A with 1 YH-9066B.
Dilution: Firstly add ethyl acetate to the main agent, stir thoroughly, and then add curing agent. The curing agent must be poured out, or reserve a small amount ethyl acetate to wash it out then stir thoroughly.
Coating method: It can be applied to the coating of any smooth roller and mesh roller.
Working concentration: Generally recommend to use the concentration of 20-40%, the best use of the concentration is 30%. Coating amount is between 2.5-4.0g /m 2.
Dry: There must be sufficient air volume, speed and temperature. Temperature control from the inlet to outlet should at 50-60 ℃, 60-70 ° C and 70-80 ° C.
Laminating: Under the condition that the roller does not damage the film, the pressure and temperature of the composite roller should be increased as much as possible. The temperature is generally controlled at 50-80 ° C. Films that are susceptible to temperature are used at 50-60 ℃, and other films can be used at 70-80 ℃.
Solidification: At the temperature 50±5 ℃ , maturing period is 48-72 hours.
Main agent 20kg/ barrel, Curing agent 4kg/barrel.
Storage:
This product should be stored in a cool and dry place, the main agent is valid for 1 year, the curing agent is valid for 10 months.
